Terahertz Sensors, Components and Systems

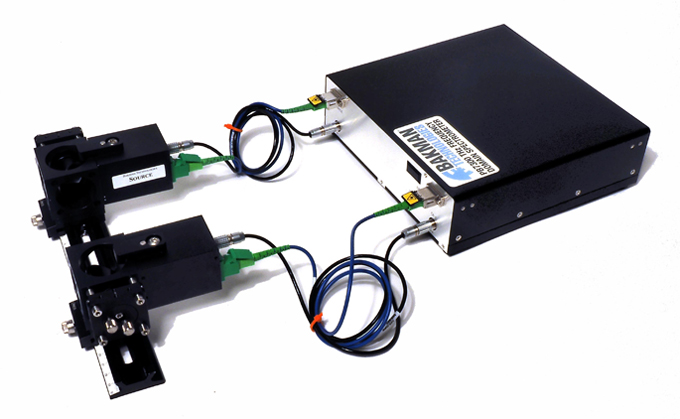

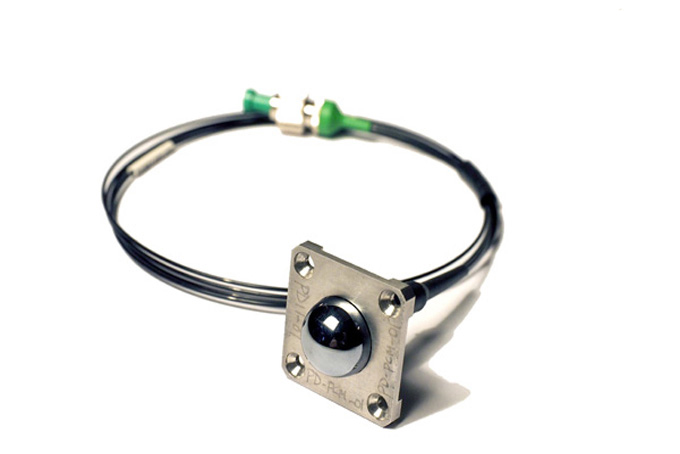

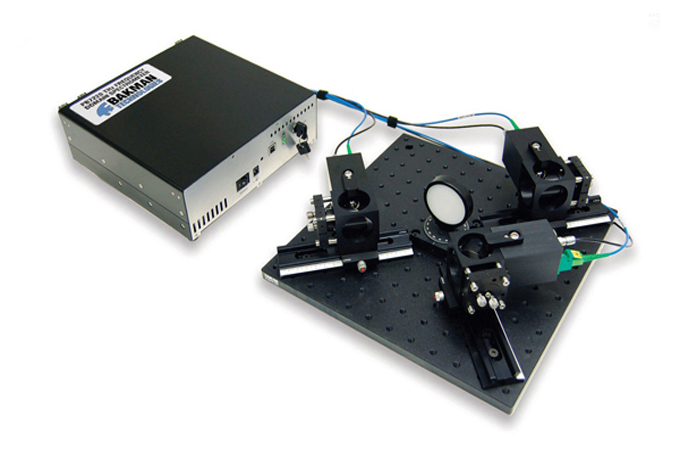

Bakman Technologies assembles the world’s only portable, turn-key, frequency domain THZ spectrometers. We have single and dual channel specromters as well as 'fringe-free' instruments all capable of performing high resolution spectroscopy. The single channel instrument can be configured for transmission or reflection measurements while the dual channel THz spectrometer is capable of simultaneously measuring both the transmitted and reflected THz power from a sample. The fringe-free spectrometers use a patented 2nd harmonic detection technique to remove the interference fringes that arise due to the homodyne detection. Our portable systems are integrated into a chassis that weighs only 1.6 kg. We also use telecomm accepted practices to package our own photomixers. Our photomixers are so robust that they are capable of repeated use at temperatures as low as 4.5 Kelvin.

Our spectrometers are sold worldwide and have been used for multiple applications including: material characterization, petroleum analysis and bio-sensing. Our customers recognize that unlike time domain systems, which rely upon expensive mode-locked lasers, photomixing systems only require two semiconductor lasers and are therefore extremely scalable. This means our technology is the most viable choice for researchers developing applications for large markets.

Learn more about our technology here.
